| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | RUIJIA |
| Orzecznictwo: | CE |
| Numer modelu: | RJ |

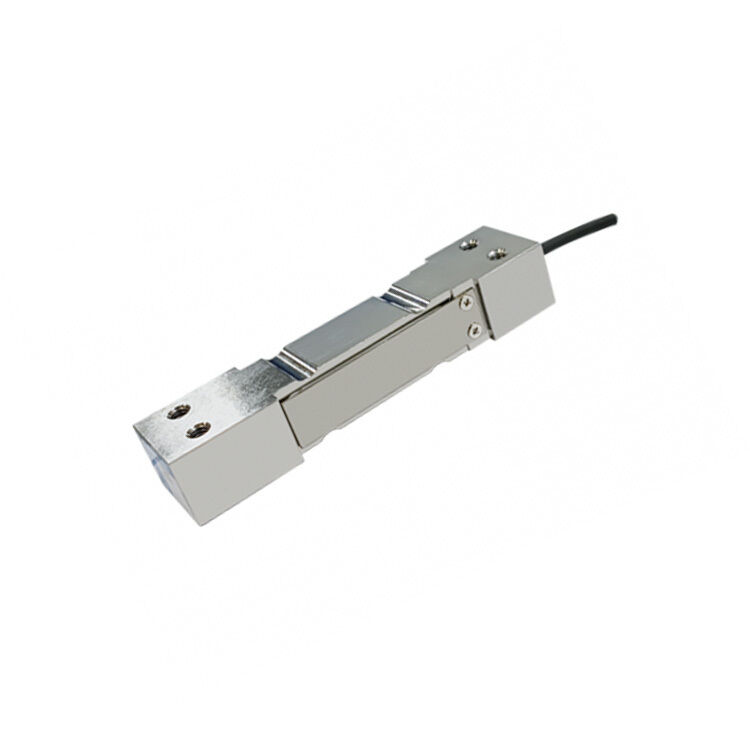

Stainless Steel Load Cell (10-50kg)
The NA1/R is a low profile design, low to medium capacity stainless steel shear beam load cell ideal for a wide range of weighing scales. The stainless steel weighing sensor is suitable for retail scales and industrial weighing systems. Particularly robust for long-term use in harsh industrial environment.
Key Features:
Stainless steel construction
Special industrialized surface treatment
High protection class, low profile design, easy to install
Effective resistance to corrosive substances
Particularly robust for long-term use in harsh industrial environment
Usage & Applications:
Pricing scales, belt scales and various weighing equipment;
Food, medical and chemical industries;
Industrial weighing systems, etc.
Dimension:
Specification:
| Rated Capacities | 10,20,35,50(kg) |
| Rated Output | 2.0 mV/V±10% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02 %R.O. |
| Hysteresis | 0.02 %R.O. |
| Repeatability | 0.02 %R.O. |
| 30mins Creep | 0.02 %R.O. |
| 30mins Return | 0.02 %R.O. |
| Safe Overload | 150 %R.O. |
| Ultimate Overload | 200 %R.O. |
| Temperature Effect On Output | 0.002 %R.O./℃ |
| Temperature Effect On Zero | 0.003 %R.O./℃ |
| Input Impedance | 390±15 Ω |
| Output Impedance | 350±5 Ω |
| Insulation Impedance | ≥5000 MΩ/(50VDC) |
| Recommended Excitation | 5~12 VDC |
| Maximum Excitation | 15 VDC |
| OperatingTemperatureRange | -20~60 ℃ |
| Construction | Stainless Steel |
| Protection Class | IP67 / IP68 |
| Cable | φ4 ×2 m |
| Recommended Platform Size | 350×400 mm |
| Mode of Connection | Red(EXC+),Black(EXC-),Green(SIG+),White(SIG-) |
