| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | RUIJIA |
| Orzecznictwo: | CE |
| Numer modelu: | RJ |

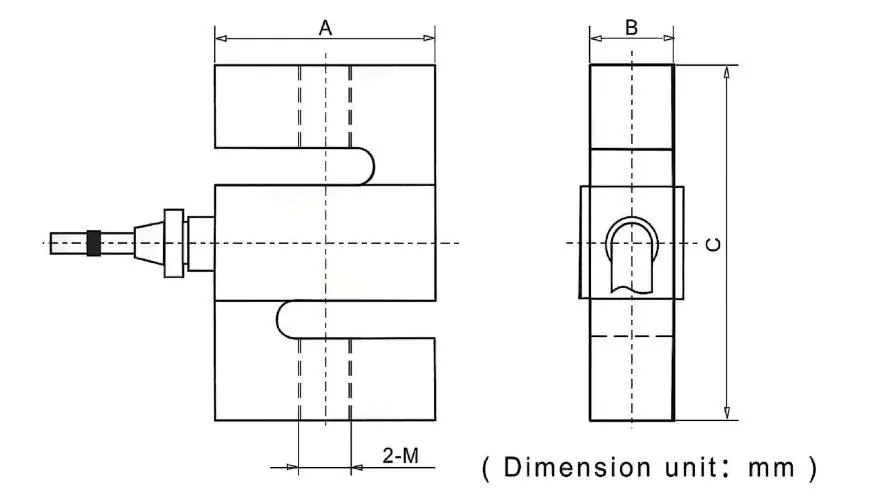

Product size drawing
| capacity | A | B | C | M |
| 10kg~30kg | 50.8 | 12.7 | 64 | M8 |
| 50kg~300kg | 50.8 | 19.1 | 76.2 | M12*1.75 |
| 500kg~2000kg | 50.8 | 25.4 | 76.2 | M12*1.75/M16*2 |
| 2000kg~5000kg | 76.2 | 25.4 | 108 | M18*1.5 |
Product parameter list
| capacity | kg | 10~5000kg |
| Rated Output | mv/v | 2.0±0.2 |
| Non-linearity | %F.S | 0.03 |
| Hysteresis | %F.S | 0.03 |
| Repeatability | %F.S | 0.03 |
| Creep | %F.S/3min | 0.03 |
| Temp.effect on zero | %F.S/10ºC | 0.03 |
| Temp.effect on span | %F.S/10ºC | 0.03 |
| Zero balance | mv/v | ±0.03 |
| Input impedance | Ω | 350±5 |
| Output impedance | Ω | 350±5 |
| Insulation resistance | MΩ | ≥5000(100VDC) |
| Recommended excitation voltage | VDC | 5~12 |
| Allowed excitation voltage | VDC | 5~15 |
| Compensated temp.Range | ºC | -10ºC~+40ºC |
| Operating temp.Range | ºC | -20ºC~+60ºC |
| Safe overload | %F.S | 120 |
| Ultimate Overload | %F.S | 150 |
| Connection | Excitation: Red:+ Black:- | |
| Signal: Green:+ White:- | ||
