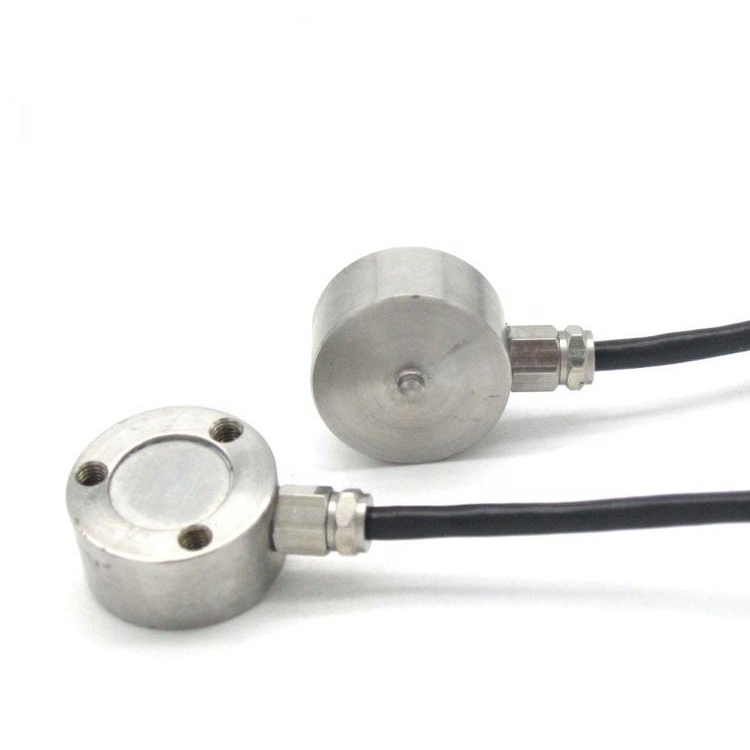

Stainless Steel Compression Load Cell 5-500kg Analog Output

Szczegóły produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	RJ
Orzecznictwo:	CE/ROSE
Numer modelu:	RJ

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

Orzecznictwo:

CE/ROSE

Numer modelu:

Produkcja:

Czujnik analogowy

Pojemność:

5-500 kg

Wrażliwość:

1,5 ± 0,2 % mv/v

Napięcie wzbudzenia:

5 ~ 12 VDC

bezpieczne przeciążenie:

150% RC

Materiał:

Stal nierdzewna

Podkreślić:

High Light

Podkreślić:

Stainless Steel Load Cell 500kg

Analog Output Load Cell Sensor

Compression Load Cell 5kg

Informacje handlowe

Minimalne zamówienie:

Cena:

$40-50

Szczegóły pakowania:

karton lub drewniana skrzynia

Czas dostawy:

5-8 dni roboczych

Zasady płatności:

L/C, D/A, D/P, T/T, Western Union

Możliwość Supply:

2000 sztuk/miesiąc

Opis produktu

Compression type sub miniature button load cell 300kg 500kg

Stainless Steel Compression Load Cell 5-500kg Analog Output 0

Capacity	5kg-500kg
Sensitivity	0.5~1.5 mv/V
Precision	0.5 %F·S
Creep	±0.2 %F·S/30min
Non-linearity	±0.5 %F·S
Hysteresis error	±0.5 %F·S
Repeatability	±0.5 %F·S
Zero temperature coefficient	±0.2 %F·S/10℃
Temperature Effect On Output	±0.2 %F·S/10℃
Input resistance	500 ± 20 Ω
Output resistance	500 ± 20 Ω
Insulation resistance	≥ 2000 MΩ
Excitation voltage	5 ~ 15 VDC
Working temp. range	-20 ~ 70℃
Safety overload	150 %F·S
Sealing grade	IP67
Material	Stainless steel
Wiring	Red: EXC+, Green: EXC- , Yellow: SIG+, White: SIG-

Stainless Steel Compression Load Cell 5-500kg Analog Output 1

Packing & Transport

Stainless Steel Compression Load Cell 5-500kg Analog Output 2

FAQ

Q: How can I get the quotation?
Please send your inquiry to us.
Click 'Contact Supplier' icon which is on the right-side or write down your requirement at the bottom of this page.

Q: What detailed information do I need to provide if I want to place an order?

We need to know the following information:
Capacity, Usage and other related parameters you need.

Q: Do you have any discount?
Yes, we take bulk order, if you buy large QTY, please send us inquiry, we can discuss the price.

Q: Can I get samples?
Yes, if you have the follower orders, we could offer the samples or free samples for you.

Q: How about the quality of the products?
We have the certification of CE and RoHs , also we are the Alibaba's verified supplier, you don't have to worry about this.

Q: When will you arrange the production?
We will arrange the production immediately after receiving your payment.

Q: Could you provide me the shortest lead time?
We have materials in our stock, if you really need, let's discuss and we will try our best to satisfy you.
