Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing

Szczegóły produktu:

Miejsce pochodzenia:	Chiny
Nazwa handlowa:	RJ
Orzecznictwo:	CE/ROSE
Numer modelu:	RJ

Szczegółowe informacje

Miejsce pochodzenia:

Chiny

Nazwa handlowa:

Orzecznictwo:

CE/ROSE

Numer modelu:

Pojemność:

500 kg, 1T, 2T, 3T, 5T, 10T, 20t, 30t, 50t

Materiał:

Ogniwo obciążeniowe ze stali stopowej

WRAŻLIWOŚĆ:

2,0 / 3,0 ± 0,1 mV / v

Ostateczne przeciążenie:

200% RO

Zastosowanie:

Ważenie czołgów, ważenie silosu, wad i kontrola

Stopień ochrony IP:

IP67

Podkreślić:

High Light

Podkreślić:

alloy steel load cell sensor

500kg load cell for tank weighing

50 ton capacity load cell

Informacje handlowe

Minimalne zamówienie:

Cena:

$98-300

Szczegóły pakowania:

karton lub drewniana skrzynia

Czas dostawy:

5-8 dni roboczych

Zasady płatności:

L/C, D/A, D/P, T/T, Western Union

Możliwość Supply:

2000 sztuk/miesiąc

Opis produktu

500kg 1ton 2ton 3ton 5ton 8ton10Ton Load Cell Module For Tank weighing

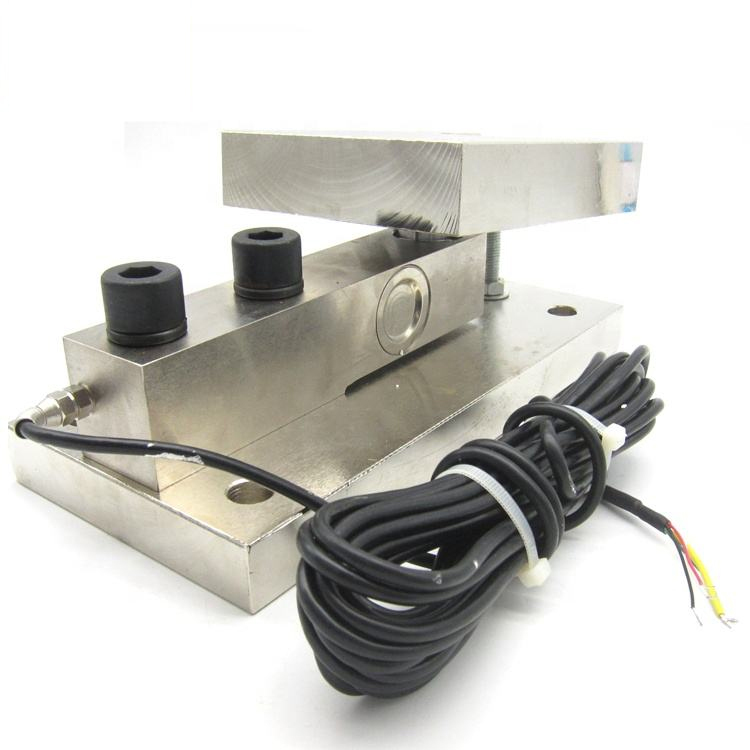

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 0

Features:

Model: RJ (with mounting module)

Rated load: 0.5-50T

Precision: C2 / C3

Safe overload:150%

Ultimate overload: 200%

Material: Alloy steel

Apply to: Truck scale or silo / tank / bin weighing system

Parameters:

Application	Floor scale
Model	RJ
Capacity	0.5t, 1t, 2t, 3t, 5t, 8t, 10t, 20t, 30t, 50t
rated output	2.0±0.004mV/V
Accuracy class	C2 C3
maximum number of verification intervals	2000 Nmax 3000 Nmax
Minimum loadcell cerification intervals	Emax/5000Vmin Emax7500 Vmin
Combined error	≤±0.030 % RO ≤±0.020 % RO
Creep	0.02%RO/30min
Temp. effect on sensitivity	0.0016 %RO/℃ 0.0014 %RO/℃
Temp.effect on zero	0.005%RO/℃ 0.002%RO/℃
Zero balance	±1.0 %RO
Input resistance	365±10ohm 1050 ±10 ohm (optional)
Output resistance	350±3 ohm 1000 ±5 ohm (optional)
insulation resistance	5000 MΩ(50V)
Recommended excitation voltage	8-15V
Compensated temperature range	-10-+40℃
operating temperature range	-35-+80 ℃
safe overload	120 %RO
Ultimate overload	200%RO
loadcell material	alloy steel -IP67 stainless steel
Connecting cable	0.5~3Ton: Φ5.7x3.5 m / 5t~8t: Φ5.7 x 8 m / 10t~50t: Φ6.3x13 m
Method of connecting wire	Red- input+, black- Input-. Green- Output+, White- output -

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 1

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 2

Packing & Transport

Alloy Steel Load Cell Sensor 500kg-50T Capacity for Tank Weighing 3
