| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | RUIJIA |
| Orzecznictwo: | CE |
| Numer modelu: | RJ |

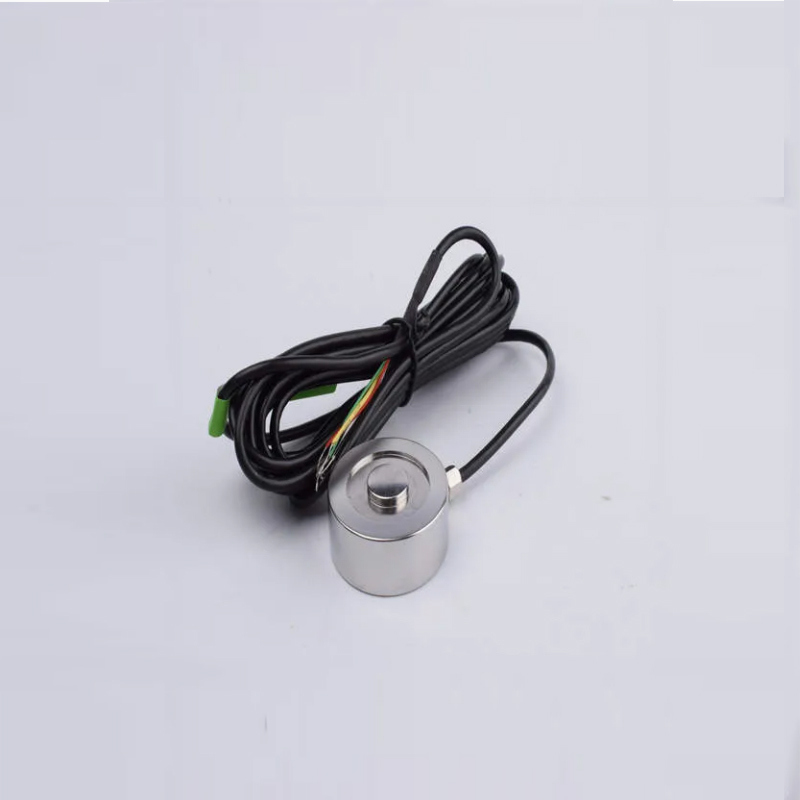

100~2000kg Ss17-4 Micro Buttom Load Cell for Automative Press Fit
Tension Compression Force Sensor, respectively tension force sensors, compression load cells and tension&compression force transducers.Depending on the shape, they can be divided into miniature button compression force sensor, pancake force sensor, donut force sensor, column type force transducer, and screw type force transducer.
Tension compression force sensor are made of 17-4 stainless steel,laser welded, with high protection level.Miniature tension compression force sensor has low profile, small deflection and mini dimension, and high dynamic response frequency.
Tension Compression Force Sensors are widely used in industrial test measurement control systems such as automotive press-fit, automated assembly, 3C product testing, new energy product assembly, medical testing, and robotics fields.
| Specifications | Technique |
| Capacity | 100,200,300,500,1000,2000kg |
| Rated output | 1.5±10%mV/V |
| Zero balance | ±0.03 mV/V |
| Non-linearity | 0.2%F.S. |
| Hysteresis | 0.2%F.S. |
| Repeatability | 0.1%F.S. |
| Temp.effect on output | 0.05%F.S./10ºC |
| Temp.effect on zero | 0.05%F.S./10ºC |
| Input impedance | 780±20Ω |
| Output impedance | 700±10Ω |
| Insulation | ≥5000MΩ/100VDC |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60ºC |
| Operation temp range | -20~80ºC |
| Safe overload | 150%F.S. |
| Ultimate overload | 200%F.S. |
| Cable size | φ5×3000mm |
