| Miejsce pochodzenia: | CHINY |
| Nazwa handlowa: | RUIJIA |
| Orzecznictwo: | CE |
| Numer modelu: | RJ |
Descriptions

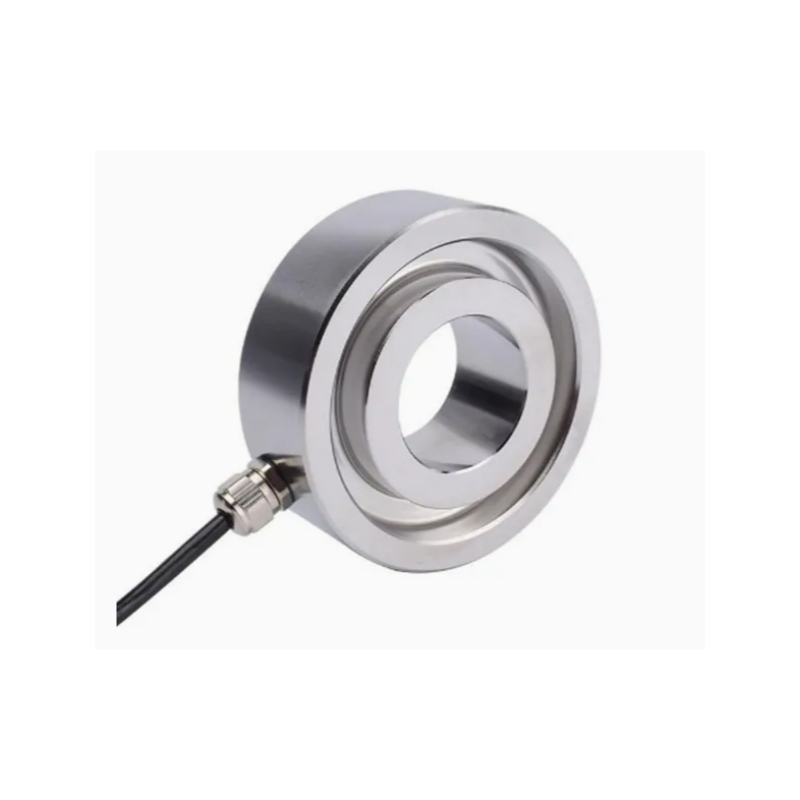

10~200kN Stainless Steel Or Customized Force Sensor is a model of our brand RUIJIASeries, Force Sensor can be used to measure force 10~200kN or customized capacity, its material we use Stainless steel, we can also customized material.
Force Sensor Sensitivity is 1.5±10%mV/V, the Zero Balance is ±0.03mV/V.
Force Sensor creep(30min) ≤0.1%F.S.. The non-linearity ≤0.1%F.S.. Hysteresis ≤0.05%F.S.. Repeatablity ≤0.05%F.S..
Force Sensor Input impedance is 780±20Ω, the output impedance is 700±10Ω.
Force Sensor Temp.effect on output is 0.05%F.S./10ºC, Temp.effect on zero is 0.05%F.S./10ºC.
Force Sensor Insulation Resistance ≥5000MΩ/100V(DV).
Force Sensor Recommended Excitation is 5-15V, the Maximum Excitation is 20V.
Force Sensor Compensated Temp Range is -10~60ºC, the Operating Temp Range is -20~80ºC.
Force Sensor safe overload is 150%F.S.. The ultimate overload is 200%F.S..
The cable size is ∅4*3000mm.
The weight is 1kg or customized
| Product name | Force Sensor |
| Capacity | 10~200kN |
| Rated output | 1.5±10%mV/V or customized |
| Zero balance | ±0.03mV/V or customized |
| Creep(30min) | ≤0.1%F.S. or customized |
| Non-linearity | ≤0.1%F.S. or customized |
| Hysteresis | ≤0.05%F.S. or customized |
| Repeatability | ≤0.05%F.S. or customized |
| Input resistance | 780±20Ω |
| Output resistance | 700±10Ω |
| Temp.effect on output | 0.05%F.S./10 ºC |
| Temp.effect on zero | 0.05%F.S./10 ºC |
| Insulation resistance | ≥5000MΩ/100V(DC) |
| Recommended excitation | 5~15V |
| Maximum excitation | 20V |
| Compensated temp range | -10~60 ºC |
| Operating temp range | -20~80 ºC |
| Safe load limit | 150%F.S. |
| Breaking load | 200%F.S. |
| Cable size | 4x3000mm or customized |
| Weight | 1kg or customized |
| Material | Stainless steel or customized |
